Find Pipe Element or Node

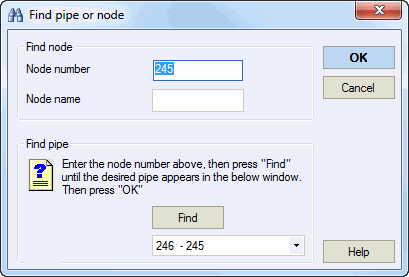

Complex models can be difficult to navigate. To simplify navigation, nodes and elements can be found using the find function. To use this function, press F6 or the toolbar icon. Menu Access: Edit > Find...

To find an element, enter a node number or name (or partial name) belonging to that name and press Find. If the located element is not the one you were searching for, press Find again to see the next result. The desired element can also be selected from the list displayed on the screen. After selecting the element, press OK and the view will automatically zoom in on that element. To find a node, enter the node number and press OK.
