Databases "Pipes", "Bends", "Tees", and "Reducers" contain all the fitting information needed for pipe stress analysis.
Database contains pipes and fittings according to various standards including latest editions of:
ASME B36.10, ASME B36.19, ASME B16.9
EN 10216-1, EN 10216-2, EN 10216-3, EN 10216-4, EN 10216-5, EN 10217-1, EN 10217-1, EN 10217-2, EN 10217-3, EN 10217-4, EN 10217-5, EN 10217-6, EN 10217-7, EN 10220, EN 10253-2, EN 10253-2, EN 10253-3, EN 10253-4
Various GOST, OST, STO, TU, MN standards
Databases can be edited manually. The fitting properties from these databases can be inserted into start piping model.
To enable database filter click the first row of each column.
For detailed description of each field, please see related pipe or fitting description: pipe, tee, bend, miter bend, reducer etc.

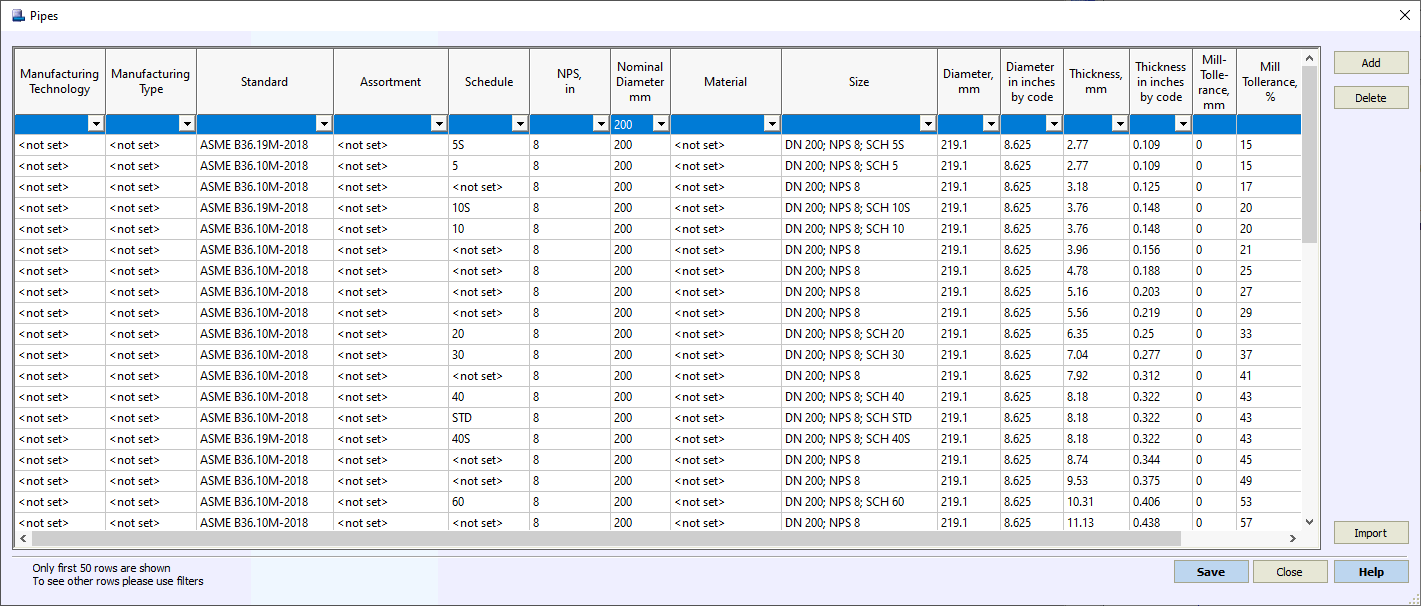

Service > Databases > Pipes

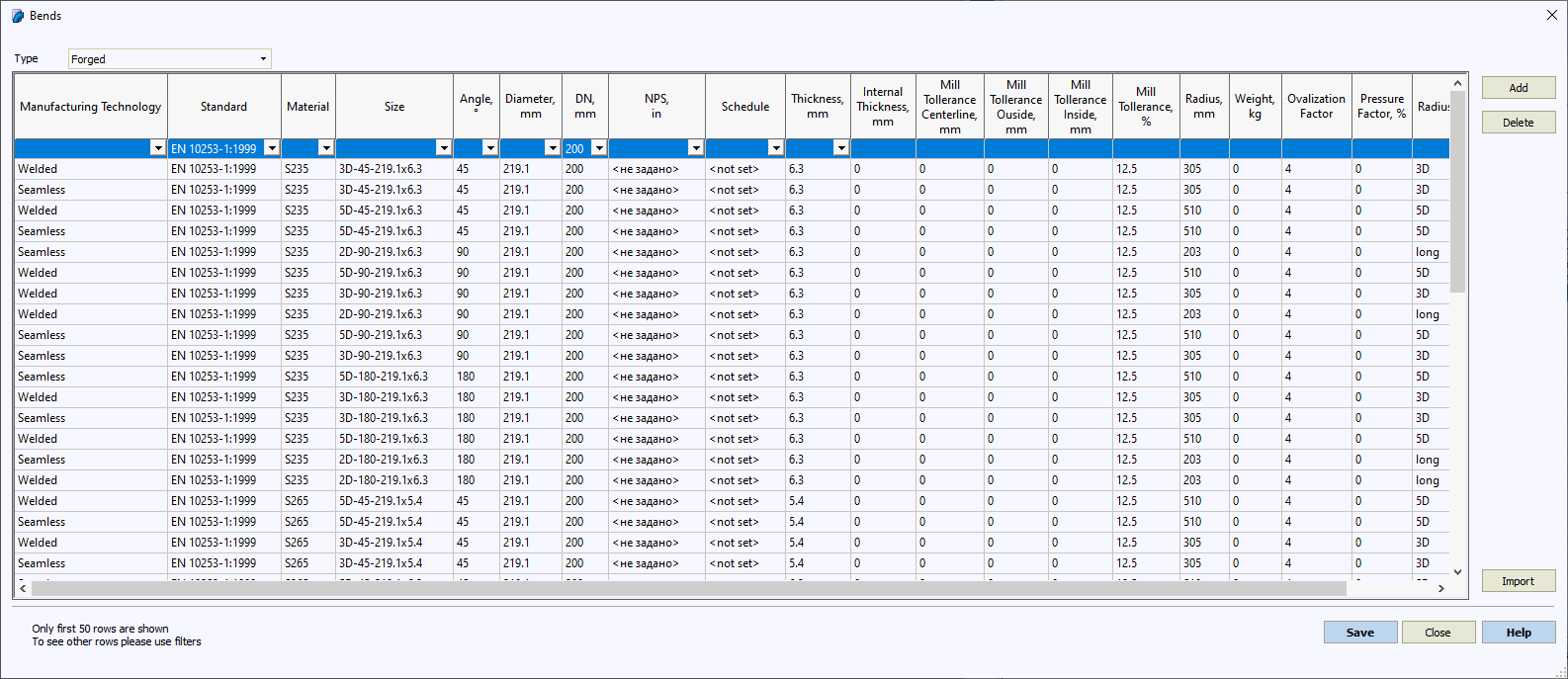

Service > Databases > Bends
Service > Databases > Tees
Service > Databases > Reducers
