Expansion Joints

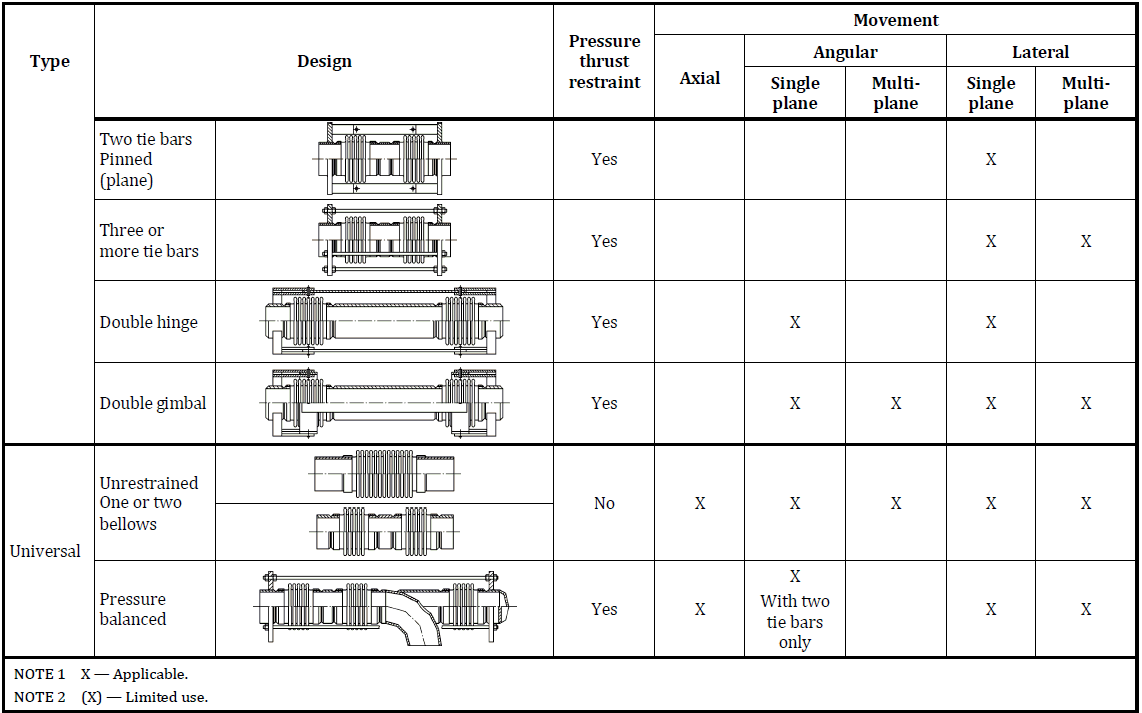

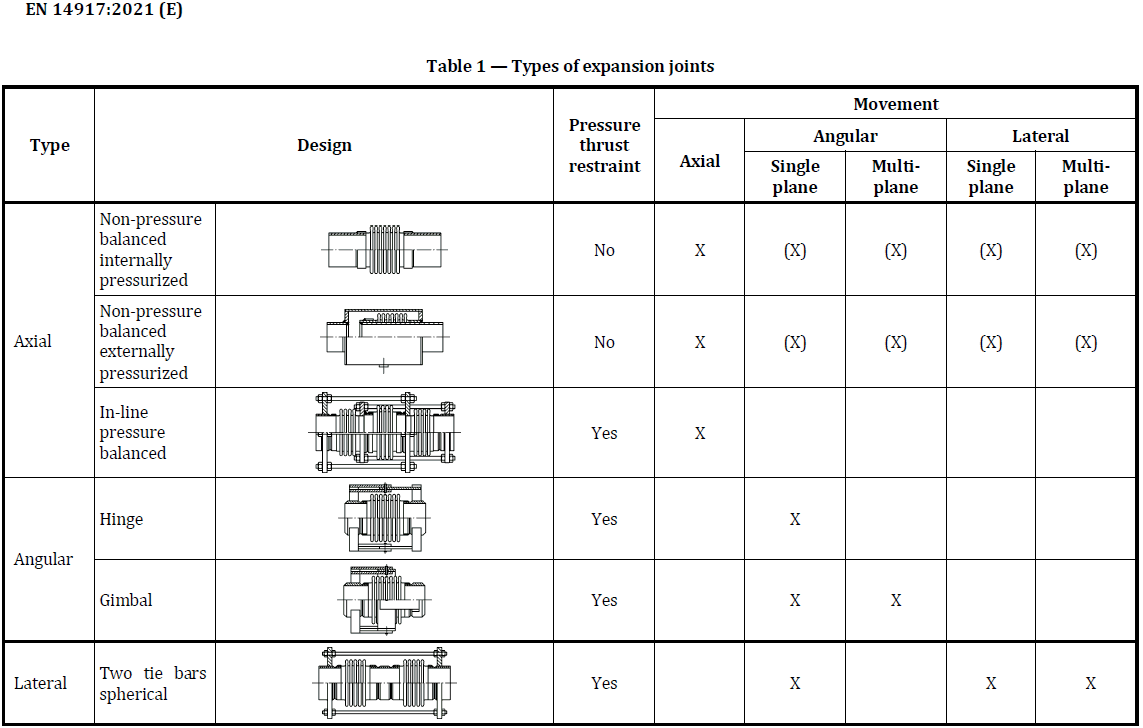

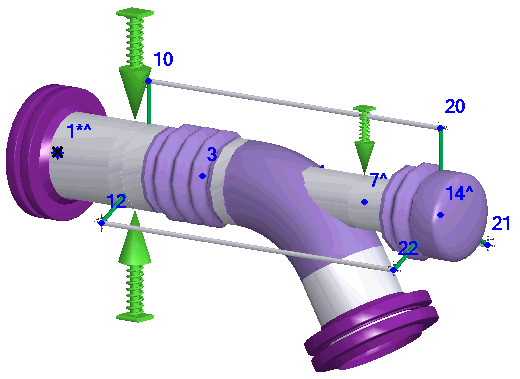

EXPANSION JOINT - movable connection between two pipes. Expansion joint types:

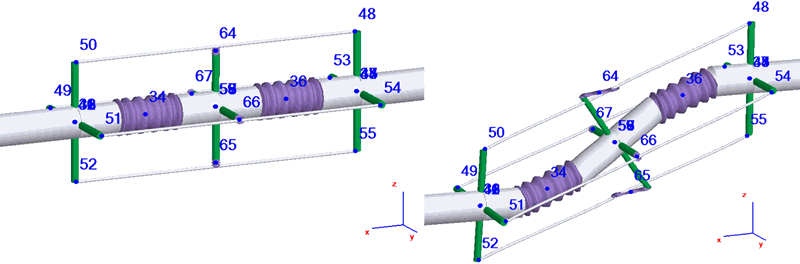

Instead of standard expansion joints also the complex model can be used, that is created using rigid elements and untied expansion joints, but it require a lot of efforts to create it and results are almost the same as using standard elements

Menu and Toolbar Access

To insert a cap, select the desired node and use the menu option: Insert -> Insert Expansion Joint
