Distance Between Nodes

Related Topics

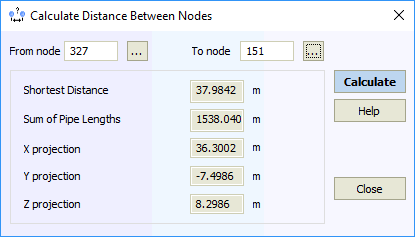

This function calculates distance between two model nodes. After clicking in the edit toolbar, the above dialog window will be displayed. To calculate distance, enter the desired node numbers in the corresponding fields or click and select the desired nodes in  3D view.

Conversely, you can select two nodes in the 3D view and click . The selected nodes will be displayed automatically in corresponding fields and distance will be calculated.

Properties

Property Description

Distance from node

Node from which distance will be calculated

Distance to node

Node to which distance will be calculated

Shortest distance

Equal to the square root of squares of the projections of the line between the nodes on the global coordinate axes

Sum of Pipe Lengths

The distance between nodes following the pipe axes

Distance projection on the X axis

Projection of the line between the nodes on the global X axis

Distance projection on the Y axis

Projection of the line between the nodes on the global Y axis

Distance projection on the Z axis

Projection of the line between the nodes on the global Z axis

Menu Access

Service > Distance Between Nodes
